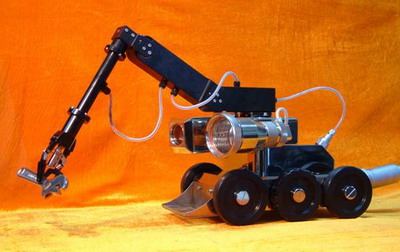

JQR-05G/L Robot for Salvaging Underwater Foreign Bodies

The robot is most suitable for application to the nuclear power stations because it has an integrated functions including crawling underwater，video monitoring and salvaging underwater foreign bodies, and is particularly capable of salvaging underwater small foreign bodies by the combination of  underwater video vidicon with various manipulators. The robot system consists of an underwater crawling device, a video vidicon, a two-dimensional head, various manipulators, a tiny underwater suction pump/cleaning device，a controller, and a 30-m cable.

Specifications and applications：

• Operating underwater 25-m deepth, and a 30-m underwater cable
• Crawling device (stainless steel)

Gradeability　　　   　　　　　　30°

Motion 　　　　　　　　　　　　Omnidirectional

Speed (continuously adjustable)　　  0～9m/min

Six wheels driving

Load capacity　　　　　　　　　  60kg；

Net weight 　　　　　　　　 About 17.5kg(excluding manipulators)

• Video vidicon system

 Resolution of color vidicon  　 480 TV line

Sensitivity　　　　　　　　  0.7lux；

White-to-back balance　　　  Automatically

Zoom range of lens 　　　　　12X, 18X, 27X (optional)

Fast manual/autonomous focus

Automatically adjusting light

Illumination lamp power 　　　　150W~250W( optional)

• Underwater head ( stainless steel or aluminum alloy)

Rotation angle range　 Azimuth　　　  ±70°

Elevation　　   ±35°～145°.

• Manipulator（aluminum alloy）：

Types (aptional)　　  4 junctions clamping

　　　　　　　　 2 junctions cleaning/suction pump

Weight of clamping foreign bodies　　　 ≤1kg

Size of sucking foreign bodies 　　　　≤M6×6 (screw，nut and washer)

Other　　　　　　　　　　　　　　 Manipulator(dismountable)

　　　　　　　　　　　　　　　　  Foreign bodies’ box(dismountable)

• Resist boracic acid eroding and resist radiation
• The robot is compact，stable and flexible. It can enter and operate in some poisonous and radioactive pipe or environment.
• Underwater operation environment

Temperature　　　 0℃～50℃

Supply power　　  AC 220V 50Hz

Boracic acid solution

γ radiation dosage　　　  ＜10²rad/h.

Notes: The image of Co60 experiment is clear when γ radiation dosage is less than 10² rad/h. The image will be interfered when γ radiation dosage is 102～104 rad/h and the unrecovered damage for the video vidicon will exist when γ radiation dosage is higher than 6X104 rad/h.
